Load controller (dump load controller) built-in a coated steel-sheet housing

designed for grid-inverters, wind heating systems, battery charger

Feed in grid system

• Load controller is taken the overvoltage protection for the grid-inverter

Wind heating system

• Load controller enabled starting without load and individual operating point adjustment

Battery charger

• Accurate closed-loop control of the charge end voltage by driving the dump load via PWM

• IU-charging characteristic and individual charge end voltage adjustment

Specifics:

• Extreme fast voltage limitation by FVC-technology

• Through 15A dc nominal current             3~bridge rectifier already integrated

• Manually step down the wind generator by hand switch possible

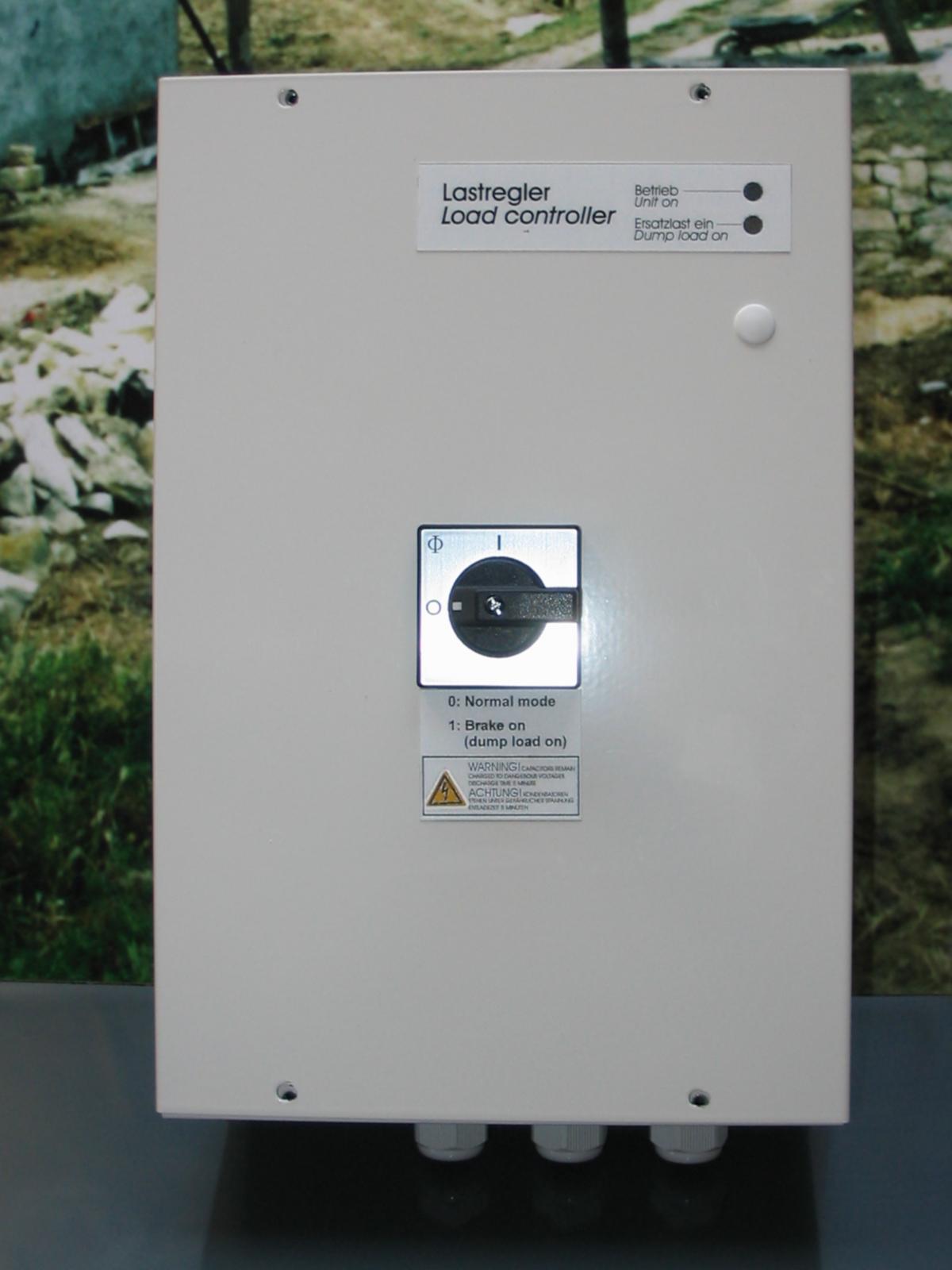

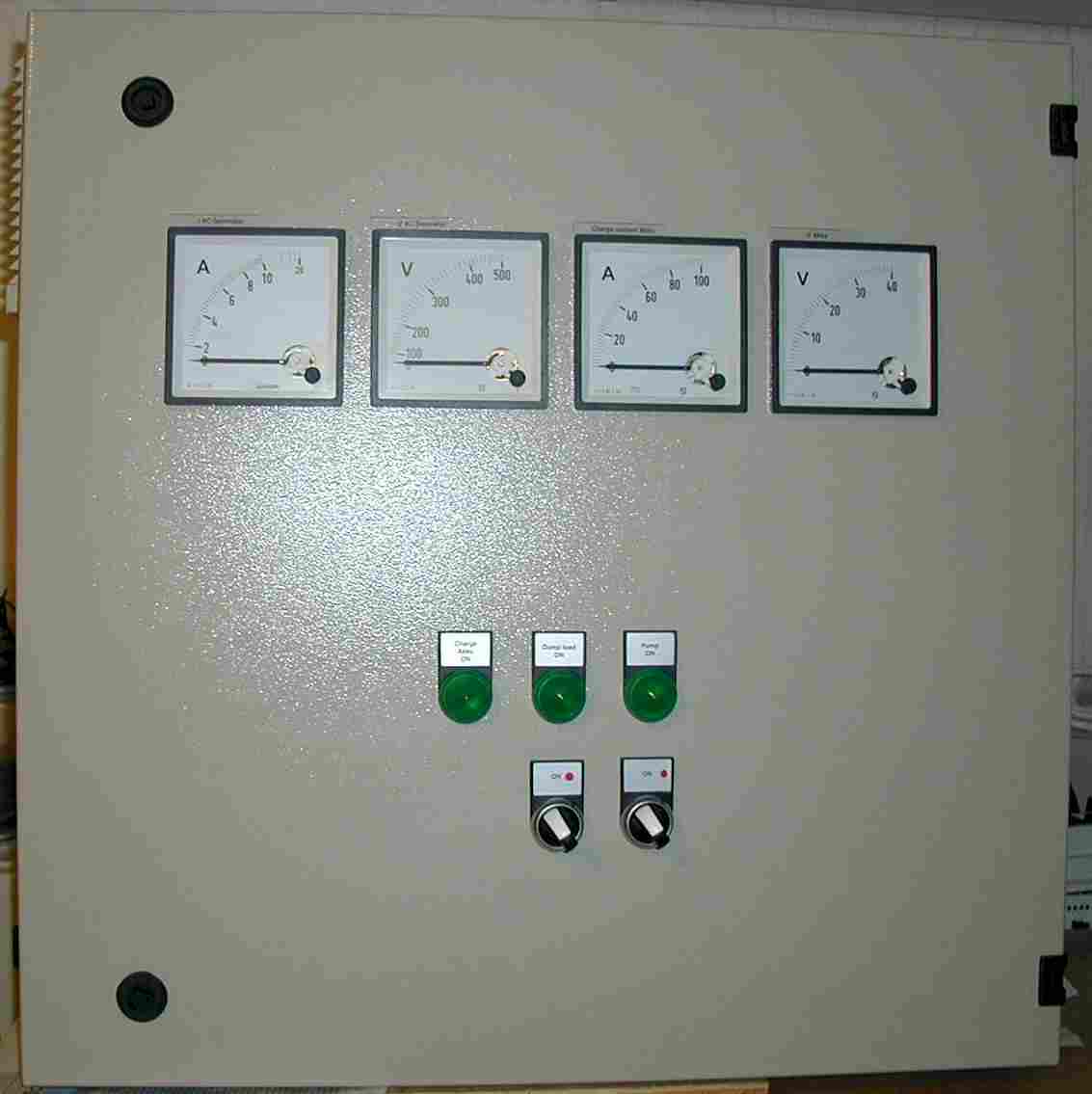

Load controller for electrical cabinet installation

for grid-inverters, wind heating systems, battery charger

• Wind heating systems
• Voltage limitation for grid inverter
• Off grid systems (battery charger)
• available for 20-80 V, 80-350 V

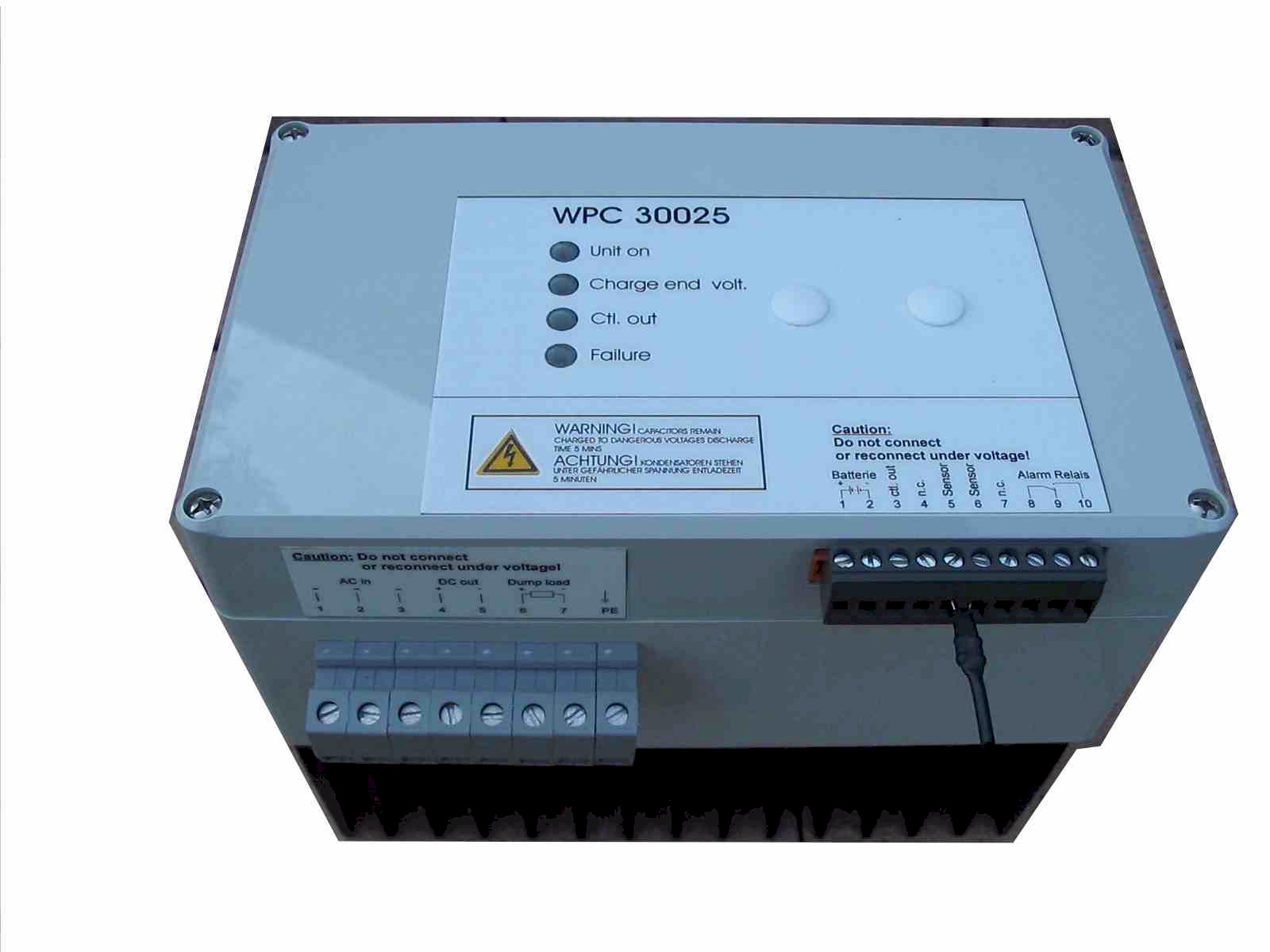

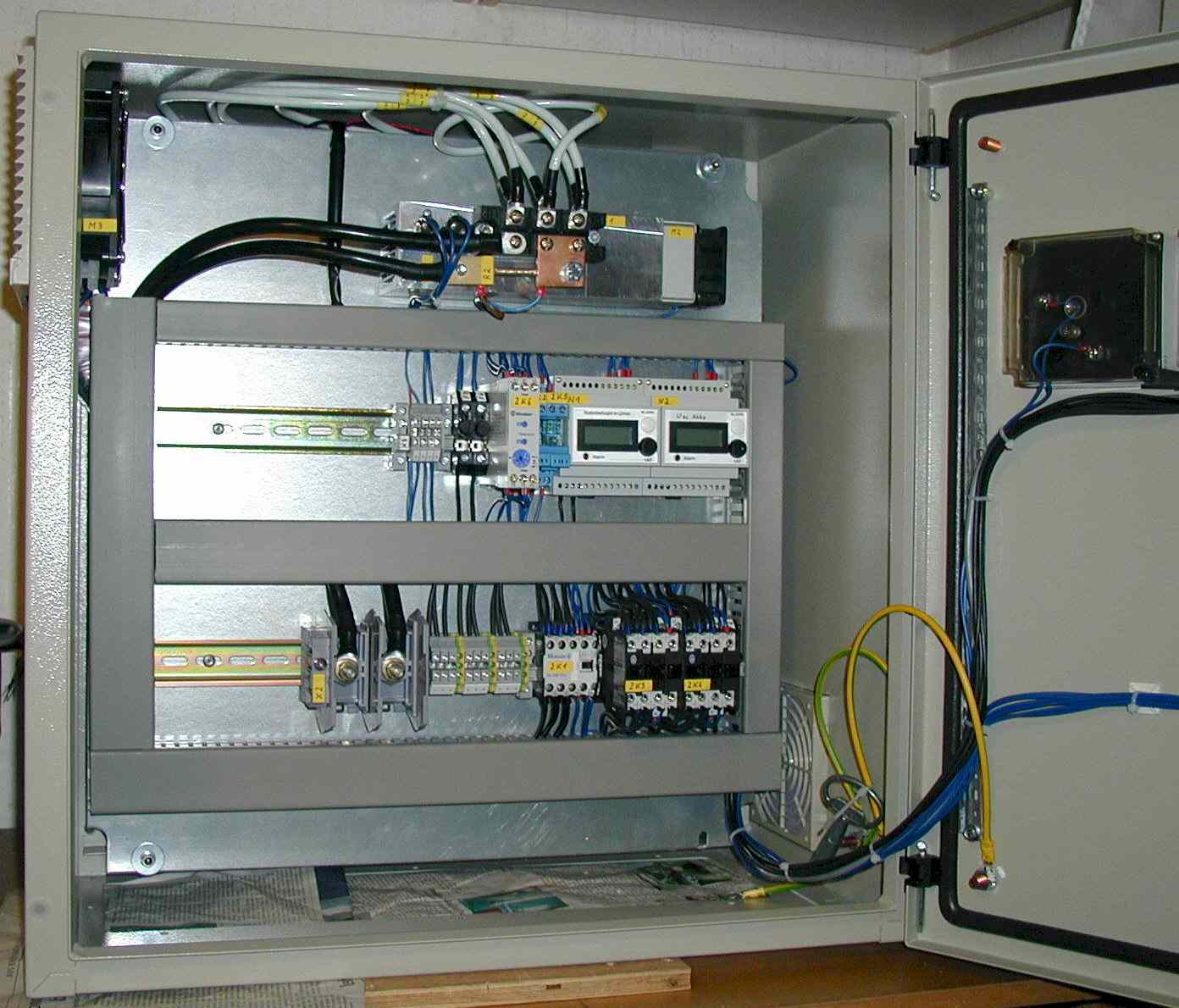

Special windpower charge controller WPC30025 for battery charging

Typ: WPC30025
Data sheet download (293 kB)

• Charge controller for wind generators up to 10kW battery charging
• Applicable for battery systems in the range from 48V - 240V
• Off grid systems

Specifics:

• Applicable for battery systems in the range from 48V - 240V

• IU-charging characteristic with temperatur compensation

• Input voltage range up to 3x330V AC at the generator side allows low conduction loss, also at high charge current

• Basic reliable concept without interference-prone power electronic components allows the operations also at remote regions with high availability

Typ: ML_D2000
Data sheet download (411 kB)

• Measure the rotor speed
• Protection from overspeed
• Rotation speed dependent switching-on consumer load

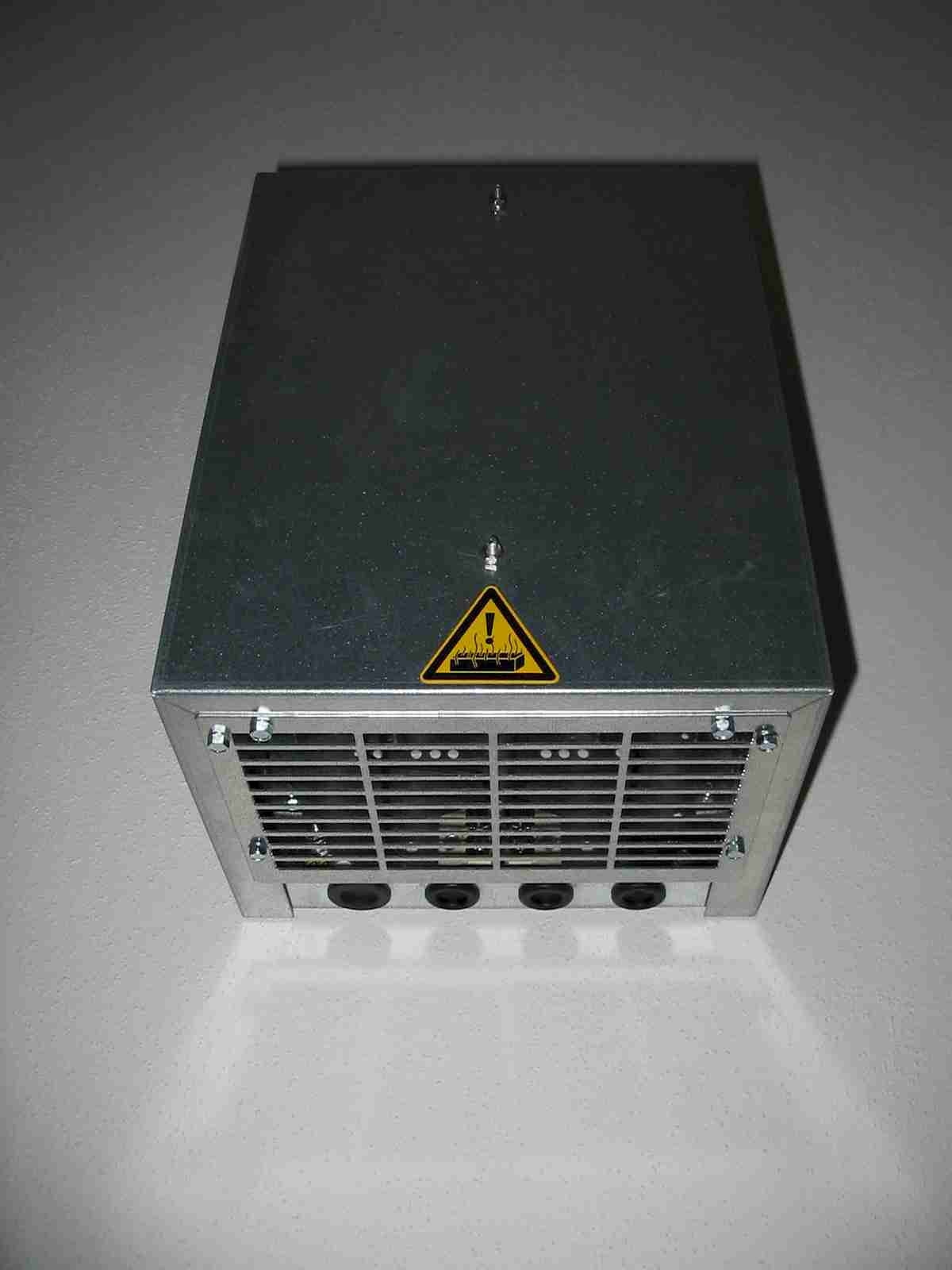

Heating resistors / dummy loads

Applicable for all from us provided load controller for grid-inverters, battery charger, heating windmill

Standard-product range:

• 1440W / 24V, 48V, 96V
• 2880W / 48V, 96V
• 3000W / 240V

other voltages and power ranges according customer request deliverable!



Applicable for all from us provided load controller for grid-inverters, battery charger

Standard-product range:

• 1000W / 48V
• 2000W / 350V
• 5000W / 200V

other voltages and power ranges according customer request deliverable!


We produce equipment also according customer request!
Small wind energy converter at request!

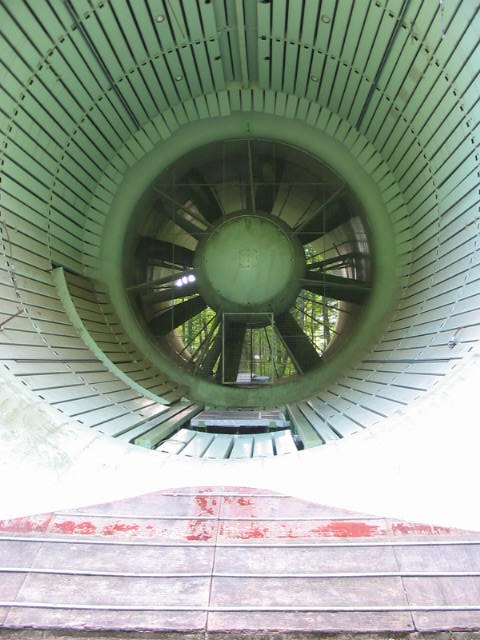

Measurement from a small wind turbine at a wind tunnel

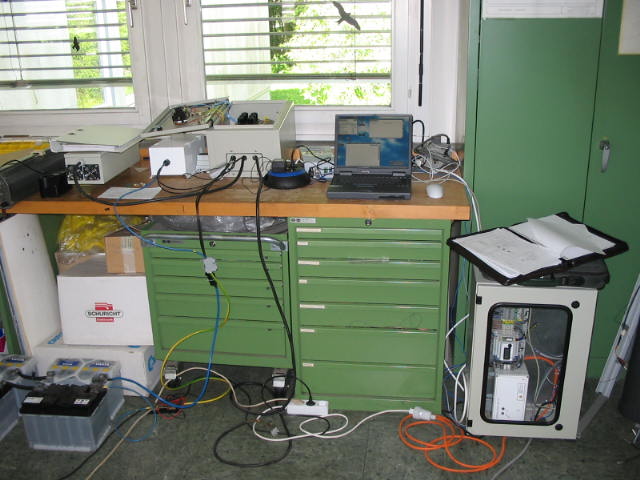

- Preparation the measurement equipment for measure automatical the characteristic curve

- Analysis the data records

By courtesy of the Universität Stuttgart, Institut für Aerodynamik und Gasdynamik

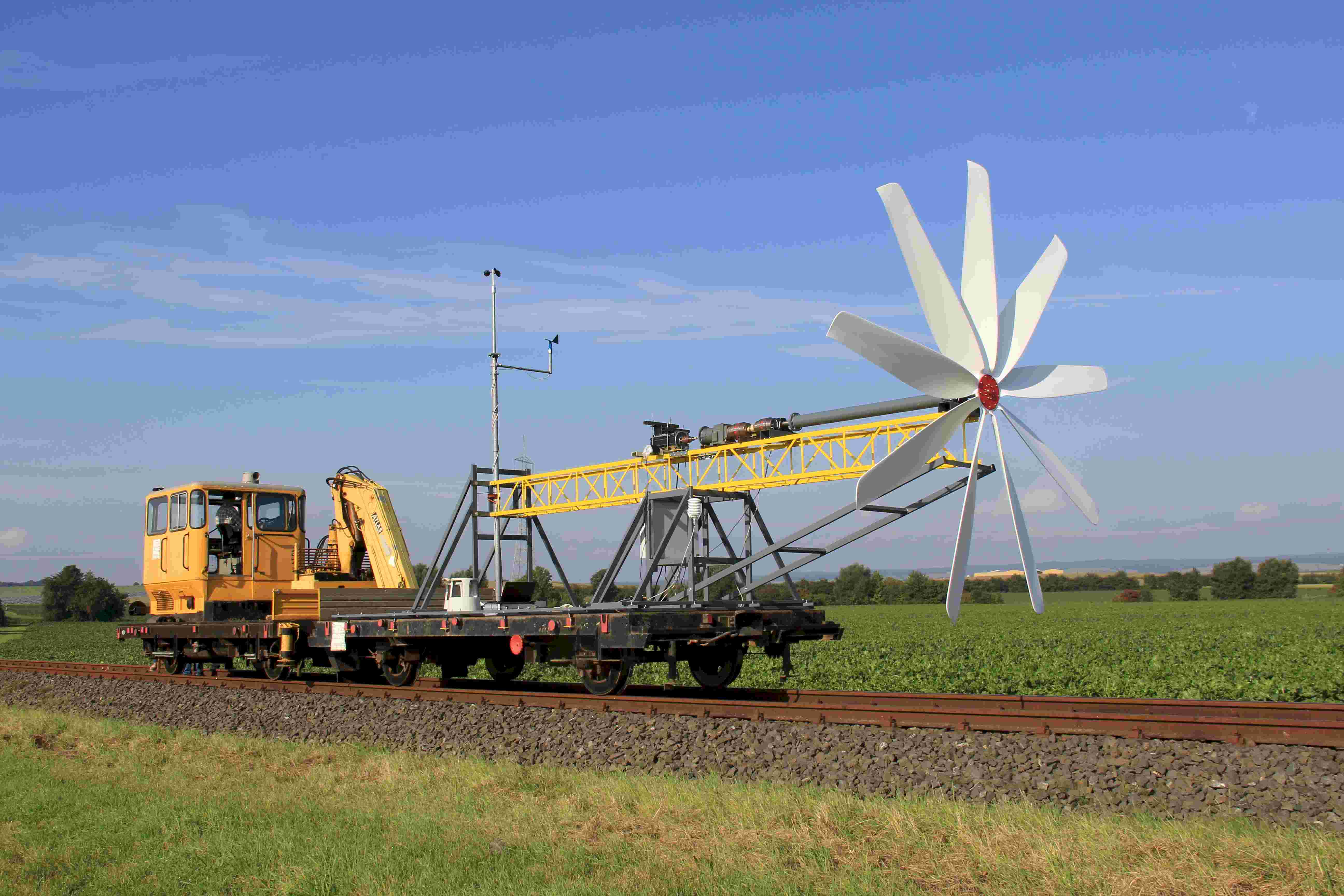

Research project optimized slowly running windturbine (short: OptiBine)

The research project OptiBine is concerned with the theme small windturbine.                                           It is a part of the study path "Kunststoff- und Elastomertechnik" at the University of Applied Sciences Würzburg-Schweinfurt.

We supplied a specific load controller with fited dump load resistor.

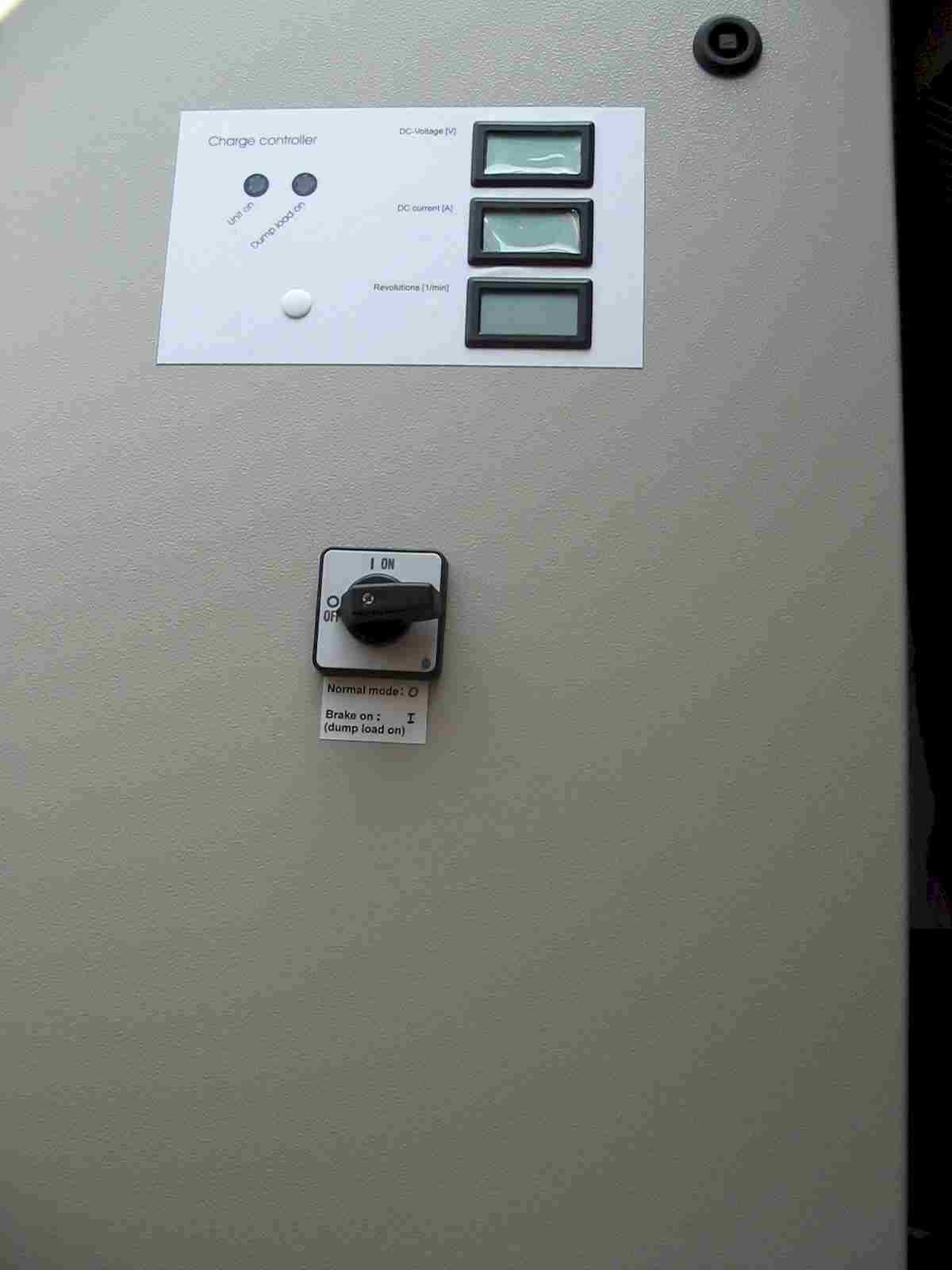

With this controller it is possible to break individual the windrotor while the test drive. This makes it possible to record the whole family of characteristics from the windrotor.

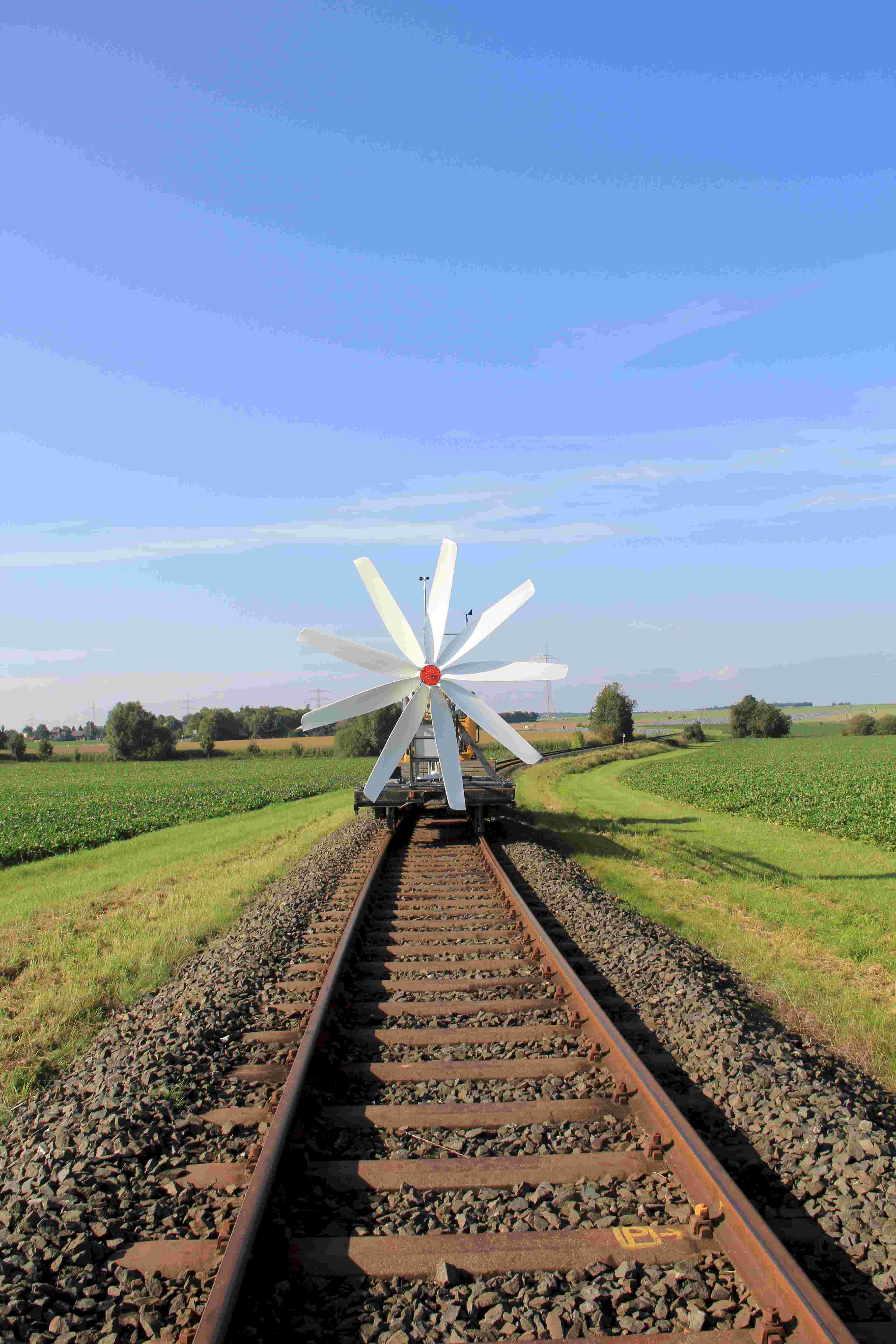

The measurement where realised at constant speed. Variety of windspeeds where realised with different speed of the railway locomotive.

By courtesy of the University of Applied Sciences Würzburg-Schweinfurt  FH W-S
